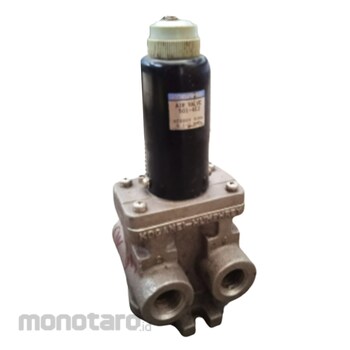

KOGANEI Solenoid Valve 501 Series
#Grup produk P106748349
Spesifikasi
| Number of Ports | 4 |
|---|---|
| Valve Function | Double Solenoid |
| Number of Positions | 2 |
| Media | Air |
| Operation Type | Internal Pilot Type |
| Port Size | 1/2 |
| Lubrication | Required (Turbine Oil Class 1 (ISO VG32) or Equivalent) |
| Response Time ON/OFF Horizontal Direction (ms) | 70 |
| Response Time ON/OFF Vertical Direction (ms) | 90 |
| Operating Temperature Range (Atmosphere and Media) (°C) | 0-60 |
| Mounting Direction | Any |
| Effective Area (mm²) | 50 |
| Maximum Operating Frequency (Hz) | 5 |
| Operating Pressure (MPa) | 0.1-0.9 |
| Operating Pressure (kgf/cm²) | 1-9.2 |
| Operating Pressure (psi) | 15-131 |
| Proof Pressure (MPa) | 1.35 |
| Proof Pressure (kgf/cm²) | 13.8 |
| Proof Pressure (psi) | 196 |
