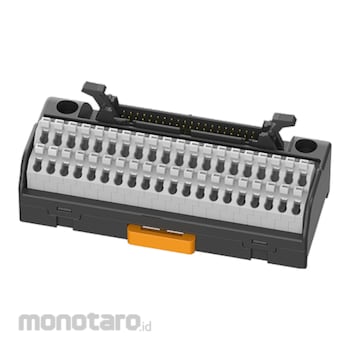

Autonics I/O Terminal Blocks AFL Series
#Grup produk P106668122
Kondisi Barang:
Authorized Partner
Spesifikasi
| Current Range (A) | Max. 1 |
|---|---|
| Humidity Level | 35-85%RH, enclosed space: 35-85%RH |
| Material | Case: Polycarbonate, Base: Polycarbonate |
| Number of Connector Pins | 40 |
| Certification | CE |
| Dielectric Strength (V/Hz) | 2700 AC-50/60 for 1minute |
| Environment Temperature Level (°C) | -15 to 55, enclosed space: -25 to 65 |
| Insulation Resistance (MΩ) | ≥1000 (at 500VDC megger) |
| Standard Protection | IP20 (IEC Standard) |
| Terminal Number | 40EA |
| Terminal Pitch (mm) | 5 |
| Terminal Type | Without Bolt |
| Voltage Range (V/Hz) | Max. 125 DC, 125 AC-50/60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The AFL series interface terminal blocks are ideal for PLCs and motion device input and output. The AFL series utilize screwless push-in type connection for simple and easy connection. The compact design with 5 mm terminal pitch allows flexible installation in limited spaces.
