Autonics I/O Terminal Blocks ABL Series
#Grup produk P106667983
Kondisi Barang:
Authorized Partner
Spesifikasi
| Ambient Humidity (% RH) | 35 to 85, storage: 35 to 85 |
|---|---|
| Ambient Temperature (°C) | -15 to 55, storage: -25 to 65 |
| Applicable Cable Solid Wire (mm) | Ø0.6 to Ø1.25 (60°C only) |
| Applicable cable Stranded wire | AWG22-16 (0.3 to 1.25mm²) (60°C only) |
| Indicator | Operation indicator: Blue LED |
| Insulation Resistance (MΩ) | ≥1,000 (at 500VDC megger) |
| Protection Structure | IP20 (IEC standard) |
| Rated Voltage (V) | DC 24 ±10% |
| Terminal Type | Screwless |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

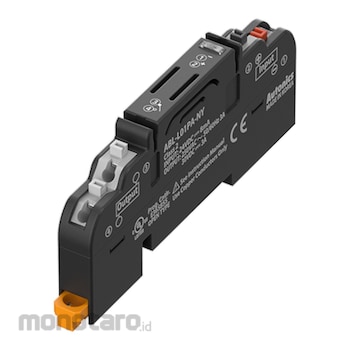

The ABL series screwless relay terminal blocks are ideal for operating various loads using output signals from PLCs featuring simple and easy connection between circuits. Relay terminal blocks offer space-saving design with 5 mm terminal pitch and stable connection with screwless push-in type for easy maintenance. Users can switch between independent or load common output options and NPN / PNP input options using jumper bars.
