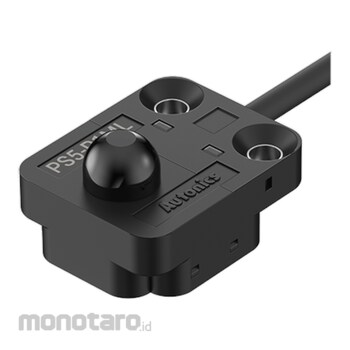

Autonics Photomicro Push Button Type BS5 Series
#Grup produk P106667600
Kondisi Barang:
Authorized Partner
Spesifikasi
| Button Operation Operation Limit Position (mm) | Max. 0 |
|---|---|
| Button Operation Output Switching Position (mm) | 4.0±0.5 |
| Button Operation Stop Position (mm) | 5.0±0.4 |
| Connection Type | Cable type (Ø3, 1m) |
| Current Consumption (mA) | Max. 35 |
| Environmental Light Level (lx) | Incandescent lamp: Max. 1000 (receive light) |
| Certification | CE |
| Environment Temperature Level (°C) | -20 to 55, enclosed space: -25 to 70 |
| External Input Response (ms) | Max. 1 |
| Humidity Level | 35-85%RH, enclosed space: 35-85%RH |
| Light Source | Infrared LED (940 nm) |
| Material | Case: Polycarbonate + Glass fiber, Button: Polyoxymethylene, Sleeve: SUS304 (Stainless steel 304) |
| Operation Load (N) | Max. 3 (Max. 0.3kgf) |
| Operation Method | Push Button Type |
| Power Supply (V) | 12-24 DC ±10% (ripple P-P: Max. 10%) |
| Standard Protection | IP40 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The BS5 series photomicro sensors are available in 8 different shapes (K, T, V, L, Y, F, R, TA types), offering maximum flexibility for various user applications and installation settings. The sensors are designed to minimize errors occurring from foreign substances. The sensors offer high visibility with operation indicators viewable from multiple directions.
