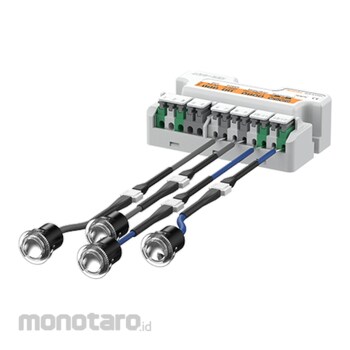

Autonics Door Side Sensors ADS-SE2 Series
#Grup produk P106667381
Kondisi Barang:
Authorized Partner
Spesifikasi
| Accessories | Sensor: 1set (ADS-SH), fixing bolts for controller: 2pcs |
|---|---|
| Channel Monitoring | 2 channel |
| Current Consumption and Power Consumption (VA/mA) | Max. 2/Max. 50 |
| Detection Distance (m) | 0-10 |
| Detection Type | Through Beam Type |
| Environmental Light Level (lx) | Sunlight: Max. 100000 (light receiver) |
| Certification | CE |
| Control Output | Relay (SPST (1a)) |
| Environment Temperature Level (°C) | -20 to 55, enclosed spacee: -25 to 60 |
| Humidity Level | 35-85%RH, enclosed space: 35-85%RH |
| Light Source | Infrared LED (850 nm modulated) |
| Output Holding Time (s) | Approx. 0.5 (from light ON) |
| Power Supply (V/Hz) | 12-24 AC, 12-24 DC/±10% (50/60) |
| Response Time (ms) | Approx. 50 (from light Off) |
| Sensitivity Adjustment | Set by button |
| Sensor Cable (mm) | 2.4, 1-wire, 5m (AWG26, core diameter: 0.16, number of cores: 7, outer insulator diameter: 1.32) |
| Sensor Cable Length (m) | 5 |
| Sensor Set Availability | 2 channel |
| Standard Protection | IP30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The ADS-A series automatic door sensors combine reliable sensing performance with sleek and simple design. The door sensors also feature various functions and features including adjustable hold time switch, 4-step detection angle adjustment, and adjustable detection area functions. With a built-in microprocessor, the ADS-A series door sensors provide optimal processing performance for stable performance in various environments.
