Autonics 5-Phase Stepper Motor&Drivers AK-RB Series
#Grup produk P106667123
Kondisi Barang:
Authorized Partner
Spesifikasi
| Backlash (ft) | ±20 (0.33˚) |
|---|---|
| Brake B type Brake | Power on: brake is released, power off: brake is operating |
| Current Consumption (A) | ±20 (0.33˚) |
| Motor Length (mm) | 120 |
| Operating Time (ms) | Max. 20 |
| Protection Structure | IP30 |
| Rated Current (A) | 1.4/Phase |
| Rated Excitation Current (A) | 0.33 |
| Rated Excitation Voltage (V) | DC 24 ±10%(no-polarity) |
| Releasing Time (ms) | Max. 25 |
| Rotation Part Inertia Moment (kgf.cm²) | 29x10-7 |
| Rotor Moment of Inertia (g/cm²) | 280 |
| Shaft Type | Single shaft |
| Static Friction Torque (kgf.cm) | Min. 8 |
| Winding Resistance (ohm) | 1.1 |
| Wire Connection | Pentagon |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

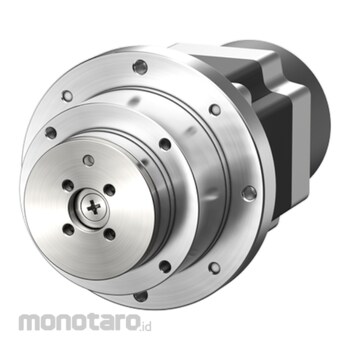

The AK-RB series rotary actuator type 5-phase stepper motors are ideal for applications requiring high torque. The AK-RB series offer great cost efficiency with its low, economical prices and also feature built-in brakes for improved convenience. The brakes are released when 24 VDC power is applied to the brake wires.
