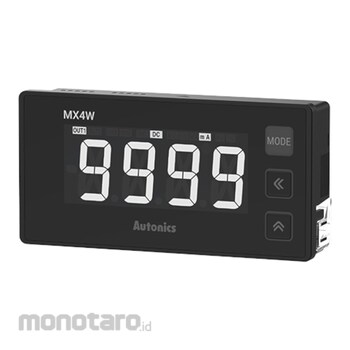

Autonics Digital Panel Meters Multipanel MX4W Series
#Grup produk P106666984
Kondisi Barang:
Authorized Partner
Spesifikasi
| AC Measurement | Select RMS value /AVG value measurement methods |
|---|---|
| Ambient Humidity (% RH) | 35 to 85, storage: 35 to 85 |
| Ambient Temperature (°C) | -10 to 50, storage: -20 to 60 |
| Character Height (mm) | 19 |
| Display Accuracy | 23±5°C - DC input: ±0.1% F .S. ±2digit, AC input: ±0.3% F .S. ±3digit ※The teminal for 5A of current input, ±0.3% F .S. ±3digit, 0~50°C - AC/DC input: ±0.5% F .S. ±3digit ※The teminal for 5A of current input, ±1% F .S. ±3digit |
| Display Cycle (s) | 0.2 to 5.0 (select per 0.1 ) |
| Display Method | 12 segment (measurement value display part: white, character height: 19mm), other display parts(red, green, yellow, indicator model: white) LCD method |
| Max. Allowable Input | DC input: approx. -110 to 110% of each measurement input range(when not using minus input: -10 to 110%) AC input: approx. 110% of each measurement input range |
| Max. Display Range | -9999 to 9999(4digit) |
| Power Factor Display | Power factor display are available when input type is DC. |
| Power Supply (V-Hz) | AC/DC 24-240, 50/60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The MX4W series digital panel meters feature LCD displays with large, easy-to read white PV characters (display height: 19 mm). The DIN W 96 x H 48 mm panel meters also feature 12-segment displays, useful for displaying various alphanumeric characters. The series also features diverse input options for application in various settings. The input and power terminals are isolated which allow multiple units to be powered by the same power supply. The panel meters also feature various other options including power factor display function for displaying analog outputs from power factor converters. The compact 20 mm rear-length size allows flexible installation in limited spaces.
