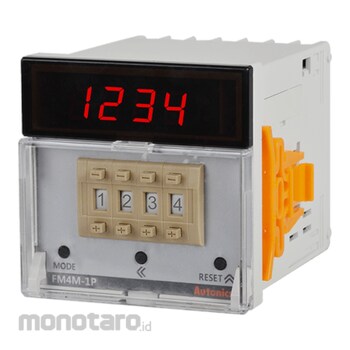

Autonics Controllers Counters FM series
#Grup produk P106666382
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp1.599.900 - Rp2.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Max. Counting Speed (cps) | 1, 30, 300, 2k, 5k |
|---|---|
| Min. Signal Width (ms) | 20 |
| Environment Ambient Temperature (°C) | -10 to 55; Storage: -25 to 65 |
| Environment Ambient Humidity (%RH) | 35 to 85; Storage: 35 to 85 |
| External Power Supply (VDC) | Max. 12 (±10% 50mA) |
| Operation Method | Count up, Count down, Count up/down |
| Power Supply (VAC/Hz) | 100-240/(50/60) |
| Protection Structure | IP20(front panel) |
| Signal Input Method | Voltage input (PNP), No-voltage input (NPN) |
| Terminal | Terminal block |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The FM series measure counters can preset multiple or divisor for 1 input pulse and display the calculated value in multiply-mode and divide-modes. The counters feature counting speeds of 1 cps, 30 cps, 300 cps, 2 kcps, and 5 kcps and decimal point display function (fixed decimal point). The FM series counters feature a standard DIN size of W 72 x H 72 mm and are available in 4-digit and 6-digit models.
Feature
'- Measure counting : multiply-mode/divide-mode- Operation modes : count-up, count-down, count-up/down
- Counting speeds : 1cps/30cps/300cps/2kcps/5kcps
- Parameter configuration settings : input/output operation mode, max. counting speed, decimal point location, OUT1/OUT2 output time (0.01 to 99.99 sec), no-voltage (NPN)/voltage (PNP) input selection, multiply-mode/divide-mode selection
- 10 year memory protection (using non-volatile semiconductor)
- Power supply : 100-240 VAC 50/60 Hz
