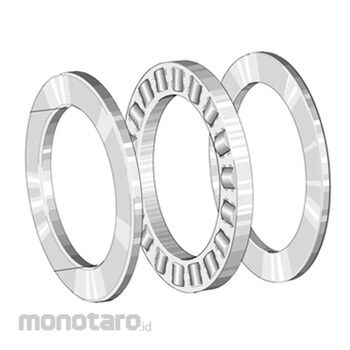

Axial cylindrical roller bearing
Axial cylindrical roller bearings 812, single direction, comprising K812, GS, WS
INA Axial Cylindrical Roller Bearing
#Grup produk P106665888
Spesifikasi
| Bore Diameter (mm) | 65 |
|---|---|
| Outside Diameter (mm) | 100 |
| Height (mm) | 27 |
| Basic Dynamic Load Rating (Axial) (N) | 177000 |
| Basic Static Load Rating (Axial) (N) | 500000 |
| Fatigue Load Limit (Axial) (N) | 49000 |
| Minimum Diameter Shaft Shoulder (mm) | 96 |
| Maximum Diameter of Housing Shoulder (mm) | 69 |
| Maximum Recess Radius (mm) | 1 |
| Rip Diameter Shaft Washer (mm) | 100 |
| Minimum Chamfer Dimension (mm) | 1 |
| Limiting Speed (rpm) | 3550 |
| Maximum Operating Temperature (°C) | 120 |
| Minimum Operating Temperature (°C) | -30 |
| Reference Speed (rpm) | 1250 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Single and double row axial cylindrical roller bearings are particularly suitable where:- High axial and shock loads occur in one direction but no radial loads are present
- The load carrying capacity of the corresponding axial deep groove ball bearings is no longer adequate (in this case, bearings of series 811 and 812 are especially suitable)
- The bearing arrangement must have very high axial rigidity
- The axial space available is very small
- The bearing arrangement can be configured, where the axial space is very small, as a direct bearing arrangement
- The bearing parts can or must be mounted separately
- The bearing arrangement is not configured in itself but, for cost reasons, ready-to-fit standard bearings are to be used
