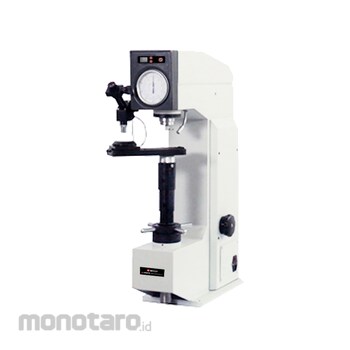

Mitech Electric Bligh Hardness Tester
#Grup produk P106659203
Spesifikasi
| Brinell Testing Force | 306N (31.25kg), 613N (62.5kg), 1839N (187.5kg) Tolerance±1.0% |
|---|---|
| Vickers Testing Force | 294N (30kg), 980N (100kg) Tolerance±1.0% |
| Brinell Measuring Range (HBW) | 8-650 |
| Vickers Measuring Range (HV) | 8-2900 |
| Vickers Scale (HV) | 30, 100 |
| Diamond Indenter Specifications | Diamond Rockwell indenter, diamond Vickers indenter |
| Brinell Scale | 2.5/31.25, 2.5/62.5, 2.5/187.5, 5/62.5 |
| Dimensions (mm) | 525x240x760 |
| Display | Classic mechanical dial |
| Eyepiece Magnification | 15x |
| Indenter Objective Lens Conversion Mode | Manual operation |
| Microocular Magnification | 2.5x(Observing), 5x(measuring) |
| Test Force Holding Time (s) | 2-60 |
| Voltage (V) | 220 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Mitech MHBRV-187.5 electric multifunctional hardness tester, based on the mechanical principle of positive pyramid diamond or spherical cemented carbide indenter pressing into the sample surface to produce indentation, realizing Brinell, Rockwell, Vickers three different materials hardness measurement by measuring the depth or diameter of the indentation. With novel appearance, full-featured, Rockwell hardness value can be directly read by the dial, Vickers, Brinell hardness values need to look up the table, easy operation, it can meet the needs of users of a variety of hardness testing. It is widely used in metal processing and manufacturing, various metal material’s failure analysis and other fields like colleges and research institutions. It is the new type multifunctional testing instrument for mental and part of the the non-metallic materials research and hardness test.
