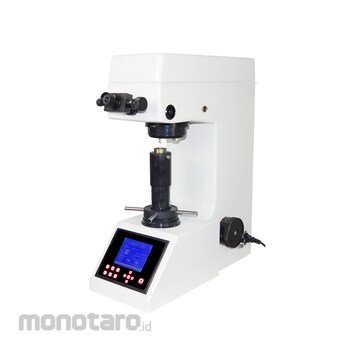

Mitech Digital Low Load Brinell Hardness Tester
#Grup produk P106658806
Spesifikasi
| Applicable Material Maximum Height (mm) | 160 |
|---|---|
| Measurement Range | 8-650HBW, 8-450HBS |
| Indication accuracy | ±3% (HBW≤225) |
| Minimum Division (µm) | 0.1 |
| Display | LCD Liquid crystal display |
| Test Force Holding Time (s) | 5-60 |
| Brinell Scale | 2.5/6.25, 1/10, 2.5/15.625, 1/30, 2.5/31.25, 2.5/62.5, 5/62.5 |
| Indenter Objective Lens Conversion Mode | Manual operation |
| Max. Distance from Head to Body (mm) | 135 |
| Microocular Magnification | 40x , 100x |
| Size (mm) | 540x 220x650 |
| The Power Series (N) | 61.25 (6.25kgf), 98.07 (10kgf), 153.2 (15.625kgf), 294 (30kgf), 306.25 (31.25kgf), 612.9 (62.5kgf) |
| Voltage (V) | 220 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Mitech MHB-62.5 Digital Display Small Load Brinell Hardness Tester, based on the mechanical principle of hard alloy indenter pressing into the sample surface to produce indentation, realizing the material hardness measurement by measuring the diameter of the indentation. It’s MITECH latest optical mechanical and electrical integration of high-tech products. It is novel and high reliable with accurately measurement. With LED display, simple operation, it can visually display the test results to meet the hardness testing requirement for the quality control and qualified assessment of the workpiece sample. It is widely used in metal processing and manufacturing, various metal material’s failure analysis and other fields like colleges and research institutions.It is the new type Brinell hardness testing instrument for testing the hardness of the materials like cast iron, steel, soft alloy with small and thin sheet type workpiece and so on.
