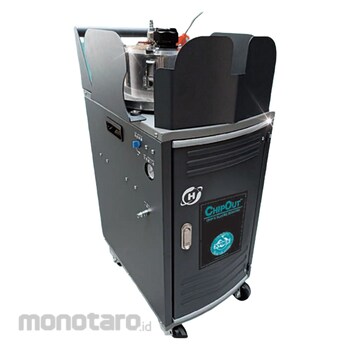

XIBEX Chips and Sludge Removal
#Grup produk P106655614
Spesifikasi
| Machine Size (mm) | 420x600x900 |
|---|---|
| Capacity of Machine (L) | 10.5 |
| Pump Capacity (L/minute) | 90-180 (test with water) |
| Air Pressure (bar) | 0.5-8.3 (7.25-120.00Psi) |
| Standard Mesh (µm) | 380 |
| Air Outlet (inch) | 3/8 |
| Filter Material | 304 Stainless Steel |
| Filtration Accuracy (µm) | 830 |
| Liquid Inlet and Outlet (inch) | 1 PT |
| Lowest Pressure (bar) | 0.5 (kgf/cm²) |
| Maximum Pressure (bar) | 8.3 (kgf/cm²) |
| Optional Mesh (µm) | 180 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A perfect match-up with the PurifierPlus is the XYBEX ChipOut. It is also a compact, easy-to-use, affordable solution for optimizing production. It simply and effectively sucks out the coolant, chips, and swarf to collect and filter all solid impurities and return clean coolant to the tank. Get the most from your coolant with ChipOut. It literally pays for itself in no time with significant cost savings.
Feature
Separates surface debris, bottom chips and swarf, and sediment from coolantExtends coolant life
Improves surface finish on parts
Reduces maintenance
Uses diaphram pump air pressure, no electricity required
High suction power, flow rate of 180 liters/min
Runs during production without shutting off machine tools
Adjustable stainless steel filters: standard mesh 380microns; optional: 830 microns and 180 microns
Optional floating device for maximum tramp oil collection
Portable and easy to use with multiple machines
Operates with water-soluble coolants or neet oils
Cost effective ChipOut adds up to big savings
- Reduces annual coolant cost
- Reduces expensive parts rejects
- Reduces maintenance to a minimum
