- The Moment of Inertia and Mass values are based on products with max. Inner diameter.
- Please modify rated/max. torque value with temperature correction factor when it’s higher than 30ºC.
- Max. torque/rated torque is the value regarding to a coupling’s self-durability and is not related to slip-torque between the coupling bore and the shaft.

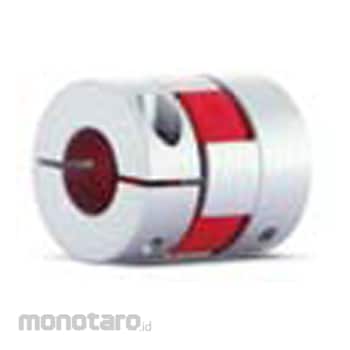

Sung-IL Machinery Jaw Type Flexible Coupling SJCB Series
#Grup produk P106633418
Spesifikasi
| Inside Diameter d1 (mm) | 10 |
|---|---|
| Inside Diameter d2 (mm) | 10 |
| Outside Diameter (mm) | 30 |
| Dimension F (mm) | 5.4 |
| Dimension L (mm) | 44.7 |
| Dimension L1 (mm) | 16 |
| Dimension L2 (mm) | 10 |
| Fasteing Torque (N m) | 3.5 |
| Maximum Speed (rpm) | 10000 |
| Maximum Torque (N m) | 32 |
| Moment of Inertia (kg.m²) | 7.5x10-6 |
| Screw Size | M4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
