A completely new type of compact design and inexpensive oil-only flow meter that uses a liquid crystal counter on the display.
A wide range of measurement with a flow rate range of 1: 125 (heavy oil) is possible. The minimum flow rate is also 2L / h (heavy oil) with ultra-high sensitivity.
The moving part of the weighing part has a simple structure with only a rotor. The display uses a liquid crystal counter and is maintenance-free.
The LCD counter is powered by a lithium battery. No external power supply is required. In addition, the battery has a long life of 7 years or more.
Wide flow range.
Built-in small strainer at the inlet and outlet of the flow meter. Removes impurities when connecting pipes and prevents rotor non-rotation.

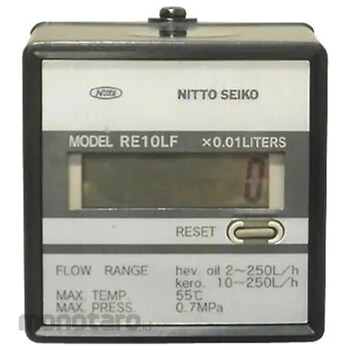

Nitto Seiko Small Oil Meter
#Grup produk P106630633
Spesifikasi
| Body Material | ADC+Surface Treatment |
|---|---|
| Rotor Material | Special Carbon |
| Kerosene Flow Range (L/hour) | 10-250 |
| Heavy Oil Flow Range (L/hour) | 2-250 |
| Compatible Fluid | Kerosene, Light Oil, Heavy Oil, And Other Oils |
| Connection Diameter | G3 / 8 |
| Maximum Working Pressure (MPa) | 0.7 |
| Accuracy | Within ± 1.0% |
| Display | LCD Counter 8 Digits |
| External Dimensions (mm) | 66x66x122 |
| Function | With Count Reset |
| Minimum Scale (L) | 0.01 |
| Maximum Display (L) | 999999.99 |
| Battery Type | Lithium Battery |
| Battery Life | More Than 7 Years |
| Operating Temperature Range (°C) | Fluid Temperature: -10 to +55 |
