Simple design to facilitate connection to a PLC
Standard RS232/RS485 interface
Compact, lightweight body makes it ideal for mounting into a control panel
Powers up to 8 units of load cells
Low cost digital indicator for various applications
Optional analog output (0-5V initial)
I/O points (1 input, 2 outputs) as standard
Easy selectable minimum divisions: 1, 2, 5, 10, 20 or 50
Selectable A/D sampling 15/30/60/120/480/960times/sec

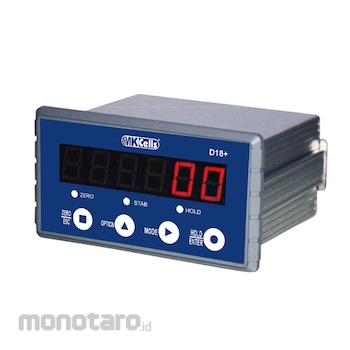

MKcells Weight Indicator MK-D18+ with RS-232
#Grup produk P106625066
Spesifikasi
| Dust/Water Protection | The IP 65 display when mounted into a panel |
|---|---|
| Panel Cut Dimensions (mm) | 93x46 |
| Load Cell Excitation (V) | DC 5, 200Ma(Max), Up to 8 load cells (350Ω) can be connected |
| Non-linearity | 0.01%F.S |
| Display Resolution | 1/100.000 |
| Temperature and Humidity (°C) | -10 to 40, 90%R.Horless(Connection be avoided) |
| Status Indicators | ZERO, STAB, HOLD |
| Data display range (d) | 0 to 999.999 |
| Minimum Sensitivity (micron) | 0.1 V/D |
| Zero Adjustment Range | 0 to 12mV (Load cell 3mV/V) |
| Analog Output (V) | 10 |
| Sampling Rate | 15/30/60/120/480/960 SPS |
| Dimensions (LxWxH) (mm) | 11089x60 |
| Max. Input (V) | 0 to 15 (Load cell 3mV/V) |
| Endosure | ABS front panel, aluminum case |
| Input Impedance (MΩ) | 10 |
| Ethernet | Modbus TCP |
| Power Consumption (W) | Approx. 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
"- Please confirm the size information and other product details on Attribute Information then place an order.- Image on this page only as Representative Image. It will follow the model number Information"
