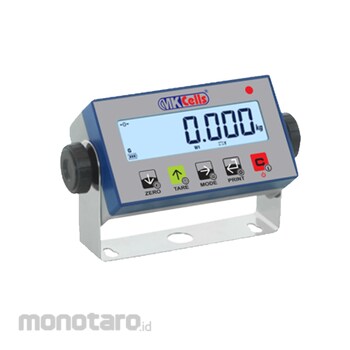

MKcells Weight Indicator MK-D17

5 keys functional waterproof keypad
Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 point
EC type approval (EN45501)
Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option)
Up to 10.000e or multirange 3 x 300e @ 0.3µ V/D in CE-M approved versions of legal for trade use
Display calibration and Set-Up from keypad or from PC through DINITOOLS
Suitable for use on the table, column or wall.
OIML R76
+/- Checkweighing
SELECTABLE FUNCTION:
Percentage weighing
Formula weighing
High resolution weighing x 10
Fitted with fixing bracket with adjustable inclination
Accumulation
Backlit 25mm LCD display with 6 high contrast digits with icons for showing the active functions
Hold and peak
Power supply from 5 to 12Vdc
NET/GROSS or lb/kg conversion
Supplied as standard with 4 AA batteries extractable drawer ( batteries not included), and 12V external power adapter ( if connected itexcludes the battery supply)
Easy to clean ABS IP54 cash, resistant to harsh and corrosive environments
KEYBOARD: zeroing, automatic tare, presettable tare, printing and/ or data transmission, selectable function command, on/off switching
A/D 24 bit, 4 chanel converter, max 200 conv/sec, autoselect and up to 8 signal linearisation points
Connection with up to 8 load cell with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each
In/ Out Truck weighing
Counting(Max resolution of 1.500.000 divisions)
