Dual function compression and tension installation
Hermatically sealed IP68 class protection
High accuracy
6 core high quality orange cable
Can use for testing machine, crane, mining, hopper, tank, axle etc

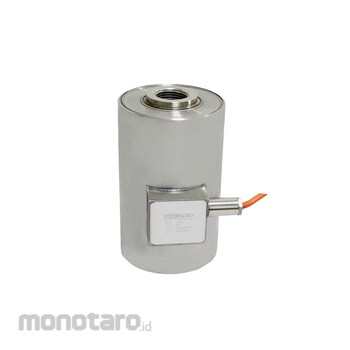

MKcells Load Cell Tension
#Grup produk P106624827
Sebelum PPN:
Rp20.999.900 - Rp24.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Rated Output | 2.0±0.005m V/V |
|---|---|
| Insulation Resistance (MΩ) | ≥5000 |
| Cable Diameter (mm) | 8 |
| Temperature Operating (°C) | -30 to 70 |
| Excitation Recommended (V) | 10-12 (DC) |
| Protection Class | IP68 |
| Material | Alloy steel |
| Cable Length (m) | 3 |
| Excitation Maximum (V) | 15 (DC) |
| Max. Safe Overload | 120%F.S |
| Total Error | ±0.05%F.S |
| Zero Balance | ±1%F.S |
| Creep Error (30min) | ±0.03%F.S |
| TC ZERO | ±0.03%F.S/10°C |
| TC SPAN | ±0.03%F.S/10°C |
| Input Resistence | 400±20Ω |
| Output Resistance | 352±20Ω |
| Ultimate Overload | 150%F.S |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
"- Please confirm the size information and other product details on Attribute Information then place an order.- Image on this page only as Representative Image. It will follow the model number Information"
Feature
