Unique design and customized design depend for user application
High quality nickel plated steel
5 core high quality orange cable
Mostly use for shipyard, crane, high building, and testing machine

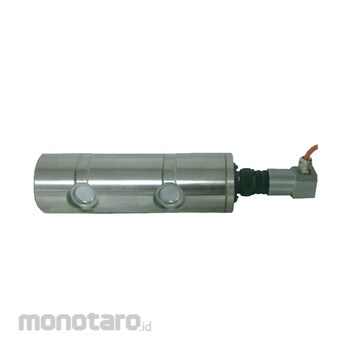

MKcells Load Cell Load Pin
#Grup produk P106624720
Spesifikasi
| Rated Output | 1.0±0.01m V/V |
|---|---|
| Insulation Resistance (MΩ) | ≥5000 |
| Cable Diameter (mm) | 5 |
| Temperature Operating (°C) | -30 to 70 |
| Excitation Recommended (V) | 10-12 (DC) |
| Protection Class | IP67 |
| Material | Nickel plated steel |
| Cable Length (m) | 12 |
| Excitation Maximum (V) | 15 (DC) |
| Max. Safe Overload | 150%F.S |
| Total Error | ±0.5%F.S |
| Zero Balance | ±1%F.S |
| Creep Error (30min) | ±0.1%F.S |
| TC ZERO | ±0.03%F.S/10°C |
| TC SPAN | ±0.03%F.S/10°C |
| Input Resistence | 760±10Ω |
| Output Resistance | 702±3Ω |
| Ultimate Overload | 200%F.S |
