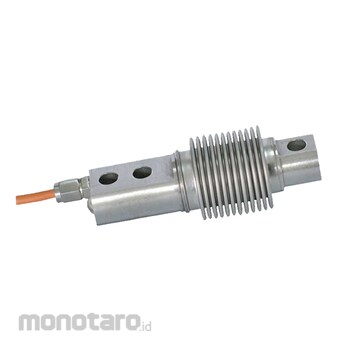

Bending beam load cell
Metal welded high quality nickel plated load cell, excellent capability in anti-erosion, waterproof, moisture-proof
High-precision, high-stability, high-reliability
Anti vibration
5 core high quality load cell
MKcells Load Cell Bending Beam
#Grup produk P106624623
Spesifikasi
| Capacity (kg) | 5-500 |
|---|---|
| Rated Output | 2.0±0.002m V/V |
| Insulation Resistance (MΩ) | ≥5000 |
| Cable Diameter (mm) | 5 |
| Temperature Operating (°C) | -30 to 70 |
| Excitation Recommended (V) | 10-12 (DC) |
| Protection Class | IP68 |
| Material | Nickel plated steel |
| Cable Length (m) | 5 |
| Excitation Maximum (V) | 15 (DC) |
| Max. Safe Overload | 120%F.S |
| Zero Balance | ±1%F.S |
| Accuracy class | C3 |
| TC ZERO | ±0.02%F.S/10°C |
| TC SPAN | ±0.02%F.S/10°C |
| Input Resistence | 400±20Ω |
| Output Resistance | 352±3Ω |
| Ultimate Overload | 150%F.S |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Eq. HBM-Z6Ulasan Produk
