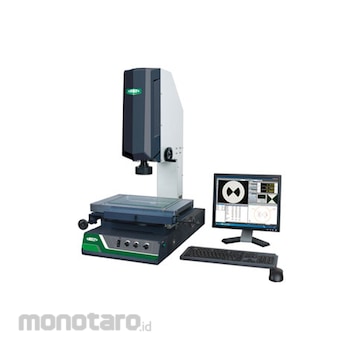

Insize Vision Measuring Systems
#Grup produk P106624128
Sebelum PPN:
Rp179.999.900 - Rp219.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Resolution of X/Y/Z Axis (µm) | 2 |
|---|---|
| Objective | 0.7x-4.5x (Zoom) |
| Camera (inch) | 1/3 Color CCD, 0.3M Pixel |
| Drive Method | Manual |
| Illumination | Surface and Contour with Adjustable LED |
| Magnification | 33X-195X (On 19\" Monitor) |
| Maximum Height of Workpiece (mm) | 160 |
| Maximum Weight of Workpiece (Kg) | 20 |
| Power Supply (V) | 110/220 (50/60Hz) |
| Workinig Distance (mm) | 92 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- Lens with coaxial light (Optional, must be installed in factory); - Probe (Optional), Includes ø2mm and ø3mm styli, ø25mm calibration ball, measuring accuracy is 10µm
Warning
- Please confirm the size information and other product details on Attribute Information then place an order.- Image on this page only as Representative Image. It will follow the Model Number and size Information
