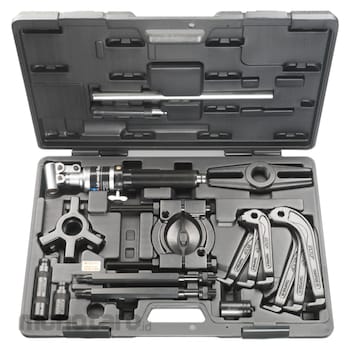

Advanced hydraulic puller kit
Contents :
1 x arm-assembly stand
3 x arms, set 1 (TMHP10E-9)
3 x arms, set 2 (TMHP10E-10)
1 x separator set
1 x beam
2 x main rods
2 x extension rods, 125 mm (4.9 in)
1 x hydraulic spindle TMHS 100
2 x extension pieces for hydraulic spindle; 50, 100 mm (2.0, 3.9 in)
1 x nosepiece with centre point for hydraulic spindle
SKF Hydraulic Puller
#Grup produk P106619524
Spesifikasi
| Maximum stroke (mm) | 80 |
|---|---|
| Nominal Working Force (kN) | 100 |
| Cycle Life Hydraulic Cylinder (kN) | Minimum 5000 cycles up to 100 |
| Threading Hydraulic Cylinder | UN 1½inchx16tpi |
| Safety Valve Setting Hydraulic Cylinder (kN) | 105 |
| Carrying Case Dimensions (mm) | 580x410x70 |
| Effective Arms Length, Arms Set 1 (TMHP10E-9) (mm) | 65 |
| Width Of Grip, Arms Set 1 (mm) | 50-110 |
| Claw Height (mm) | 8 |
| Effective Arms Length, Arms Set 2 (TMHP10E-10) (mm) | 115 |
| Width Of Grip, Arms Set 2 (mm) | 75-170 |
| Maximum Reach (mm) | 250 |
| Shaft Diameter Range (mm) | 20-100 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Feature
- Versatile kit with two different arm lengths usable in 2-arm or 3-arm configuration and strong back puller- Effortless dismounting with hydraulic spindle
- Self-locking arms minimise risks of slippage under load
- Spring-loaded centre point allows easy puller centring
- Supplied with two hydraulic spindle extension pieces to allow quick adaptation to required pulling length
- Hydraulic spindle is equipped with safety valve to prevent puller overload
