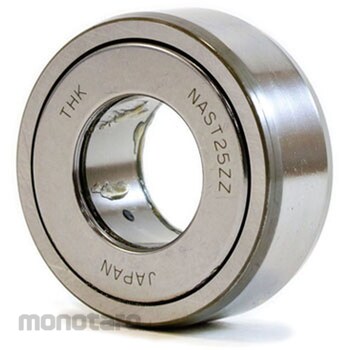

THK Separable Roller Follower NAST - ZZ (without Seal, with Side Plate, Cylindrical Outer Ring)
#Grup produk P106591662
Spesifikasi
| Dimension B (mm) | 19.8 |
|---|---|
| Outer Diameter (φmm) | 52 |
| Basic load rating C (kN) | 20.7 |
| Basic load rating Co (kN) | 28.4 |
| Dimension A (mm) | phi 43 |
| Dimension B1 (mm) | 20 |
| Dimension DI (mm) | phi 25 |
| Dimension E1 (mm) | 3 |
| Dimension E2 (mm) | 1 |
| Dimensions d (mm) | Φ52 |
| Inner Diameter (Φmm) | 25 |
| Limit Speed (rpm) | 7000 |
| Mass (g) | 225 |
| Material | Carbon steel |
| Truck Load Capacity (KN) | 15.3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A roller follower is a compact and highly rigid bearing that has a needle bearing built into it and is used as a cam plate or guide roller for linear motion. The outer ring is designed to be thick and withstand impact loads because it rotates while directly contacting the mating surface. A needle roller with a precision cage is built into the outer ring, preventing skew, providing excellent rotation performance, and withstanding high-speed rotation. Automatic machine, dedicated machine cam mechanism, various conveyors, conveyors, bookbinding machines, machining center tool changer, pallet changer, automatic coating machine, automatic warehouse fork
