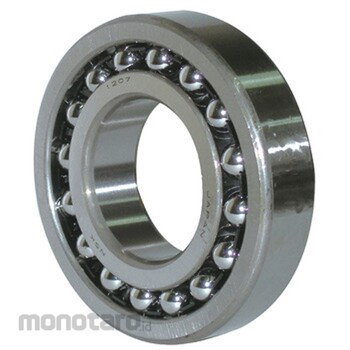

NSK Self Aligning Ball Bearing Cylindrical Hole 1200 Series
#Grup produk P106591626
Spesifikasi
| Number of track trains | Double row |
|---|---|
| Race ring Shape | Self-aligning ball bearings |
| Outer Ring Type | Flat |
| Load Direction | Radial |
| Shield Shape | Open type |
| Basic Load Rating Cr (N) | 4150 |
| Allowable Grease Lubrication Rotation Speed (rpm) | 26000 |
| Allowable Oil Lubrication Rotation Speed (rpm) | 30000 |
| Basic load rating Cor (N) | 895 |
| Body Material | High carbon chromium bearing steel |
| Dimension R (mm) | (Minimum) 0.6 |
| Identification Number | 129 |
| Inner Diameter d (Φmm) | 9 |
| Mass (g) | 21 |
| Outer Diameter d (mm) | 26 |
| Remark | 1 sheet iron punching cage |
| Rolling Element Material | High carbon chromium bearing steel |
| Type | Cylindrical hole |
| Width B (mm) | 8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The inner ring has two rows of tracks, and the outer ring has a spherical surface. Since the center of curvature of the spherical surface coincides with the center of the bearing, the inner ring, ball and cage can be tilted freely with respect to the outer ring. Axis misalignment caused by shaft or housing machining errors or mounting defects is automatically adjusted.
