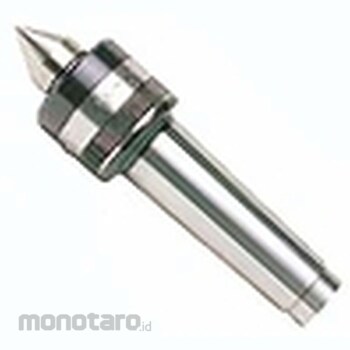

NSK Rotation Center (LC-N Type)
#Grup produk P106591565
Spesifikasi
| Dimension L1 (mm) | 35 |
|---|---|
| Overall Length L (mm) | 166 |
| Angle α (°) | 60 |
| Dimension L2 (mm) | 46 |
| Dimension L3 (mm) | 85 |
| Dimensions d (mm) | Φ46 |
| Maximum run-out of center cone (mm) | 0.005 |
| Shank K | MT-3 |
| TRUSCO Number | 109-0348 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A highly rigid, quasi-high-speed type that absorbs the thermal expansion of the workpiece due to high-speed cutting and adopts a buffer structure that prevents excessive axial load from being applied to the thrust ball bearing. The main body is designed to fit within the range of 6 ° center angle, so it does not get in the way of tool penetration and is suitable for a copying lathe. The bearing clearance can be adjusted by tightening the front lid with a wrench to maintain high accuracy.
