THK Long Type with Linear Bush Seal
#Grup produk P106591060
Spesifikasi
| Dimension W1 (mm) | 18(±0.02) |
|---|---|
| Basic load rating C (N) | 1230 |
| Basic load rating Co (N) | 2350 |
| Contents of set | Linear bushing: LM 16U |
| Dimension B (mm) | 52 |
| Dimension B1 (mm) | 66 |
| Dimension C (mm) | 6 |
| Dimension H (mm) | 4.4 |
| Dimensions d2 (mm) | 8 phi |
| Dimensions dR (mm) | phi 16 |
| Dimensions j (mm) | 24(±0.02) |
| Height M (mm) | 42 |
| Inscribed Circle Tolerance (Φmm) | 0-(-0.009) |
| Mass (g) | 295 |
| Material (Outer Pipe) | SUJ2 (high carbon chromium steel) |
| Material (Retainer) | Made of resin |
| Material (Seal) | Rubber |
| Maximum Operating Temperature (°C) | 80 |
| Overall Length L (mm) | 76 |
| Width (mm) | 36 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

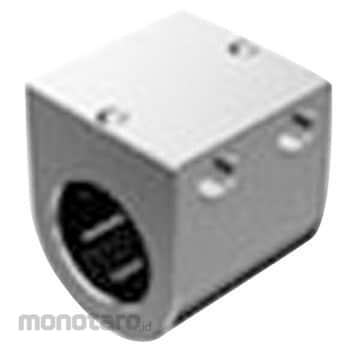

LM case unit A case unit that incorporates a standard linear bushing in an aluminum case that is smaller and lighter than the SC type. Compact design is possible compared to SC type. The mounting direction is also flexible, and it is designed so that two load ball rows are loaded on the upper surface of the case, improving the life performance.
