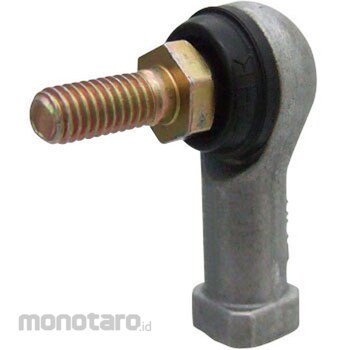

THK Link Ball BL-A Type (Left-hand Thread Type)
#Grup produk P106590900
Spesifikasi
| Dimensions d4 (mm) | 9.2 |
|---|---|
| JIS Class | JIS Class 2 |
| Dimension S1 (mm) | M5x0.8 |
| Allowable Tilt Angle (°) | 40 |
| Bowl Diameter (mm) | 9.525 |
| Diameter D (Φmm) | 15 |
| Dimension L1 (mm) | 27 |
| Dimension W (mm) | 10 |
| Dimension d1 (Φmm) | 9 |
| Dimensions d2 (mm) | 5 phi |
| Dimensions m1 (mm) | 21 |
| Dimensions m2 (mm) | 10 |
| Height H (mm) | 26.7 |
| Length L (mm) | 34.5 |
| Mass (g) | 12 |
| Material | Holder / high strength aluminum alloy (A-1 alloy) Shank with ball (light carburized carbon steel ball hardness) / HV 650 or more Shank with a ball (Shank) / S35C (HRC 20-28, chromate treatment) Boots / NBR Special Synthetic Rubber |
| Static Load Capacity (N) | 6470 |
| Type | Left-hand thread type |
| Yield Point Strength (N) | 2250 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The holder is molded at right angles to the ball shank with specially welded high precision steel balls and external threads. Grease pockets are arranged on the top and bottom of the spherical surface for good lubricity and excellent wear resistance. The weight is greatly reduced by the use of high-strength aluminum alloy.
