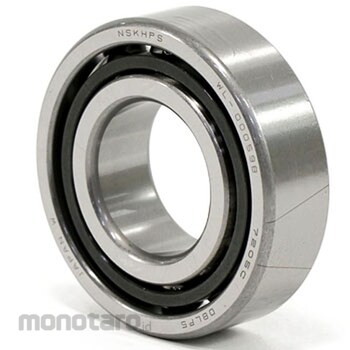

NSK Combination Angular Contact Ball Bearings 7200 Series
#Grup produk P106590201
Spesifikasi
| Chamfer dimension r1 (mm) | 0.6 (minimum) |
|---|---|
| Race ring Shape | Angular contact ball bearings |
| Outer Ring Type | Flat |
| Load Direction | Radial |
| Shield Shape | Open type |
| JIS Grade | 5 |
| Body Material | High carbon chromium bearing steel |
| Chamfering Size r (mm) | 1.0 (minimum) |
| Coefficient fo | 14 |
| Contact Angle (°) | 15° |
| Inner Diameter d (Φmm) | 25 |
| Outer Diameter d (mm) | 52 |
| Rolling Element Material | High carbon chromium bearing steel |
| Symbol of internal clearance preload | L light preload |
| Width B (mm) | 15 |
| Working point a (mm) | 12.7 |
| Working point distance a0 (mm) | 25.3 |
