THK Cam Follower with Hexagon Socket CF Type without Seal Spherical Outer Ring
#Grup produk P106590122
Spesifikasi
| Dimension B1 (mm) | 12 |
|---|---|
| Dimension B (mm) | 11 |
| C (KN) | 4.17 |
| CO (KN) | 4.65 |
| Dimension H (mm) | 4 |
| Dimension L (mm) | 11 |
| Dimension R (mm) | 0.5 |
| Dimension S (mm) | M8x1.25 |
| Dimensions d (mm) | 19 |
| Limit Speed (rpm) | 20000 (Applicable to grease lubrication without Seal. Allowable up to 130% of this value for oil lubrication and up to 70% for Seal lubrication.) |
| Mass (g) | 28.5 |
| Outer Diameter (φmm) | 19 |
| Seal | No Seal |
| Shape | Spherical outer ring |
| Width (mm) | 11 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

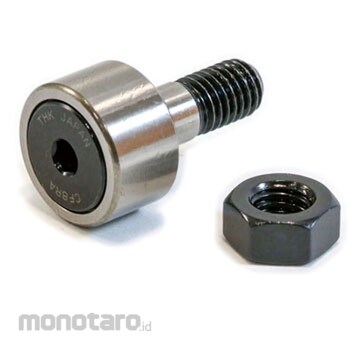

A bearing with a stud with a built-in needle roller with a precision cage in a thick outer ring is used in a wide range because it is compact and easy to handle. Since the hexagon socket is provided on the stud head side, it can be easily installed with a hexagon wrench. The spherical outer ring absorbs the shaft misalignment without difficulty when installed, and helps to reduce the eccentric load.
