A wide machining range reduces the number of tools and the number of tool changes. The thick design and fixing with two screws allow for chamfering in the lateral feed. Uses a parallelogram long tip ideal for chamfering. Supports center through.
Uses a parallelogram long tip ideal for chamfering.
Tips are not included.

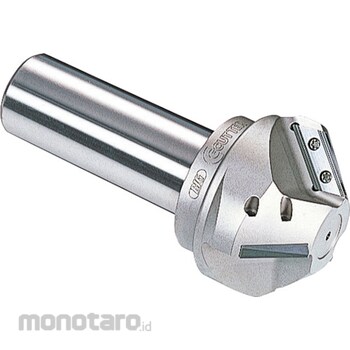

BIG St Shank Type
#Grup produk P106584592
Spesifikasi
| Shank Diameter (mm) | 25 |
|---|---|
| Number of Tips | 2 |
| Blade Shape | 1 blade |
| Pilot Hole Diameter (Φmm) | 10 (minimum) |
| Suitable Tip | CW1909A |
| Blade Diameter (mm) | 45 |
| Chamfering Diameter (mm) | 40 (maximum) |
| Shank Length (mm) | 58 |
| Under Neck Length (mm) | 35 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
The wide machining range reduces the number of tools and the number of tool changes.With a thick wall design and fixing with two screws, chamfering of lateral feed is also possible.
Uses a long parallelogram tip that is ideal for chamfering.
It supports center through.
