N / MS series connectors are versatile round connectors that can be used under normal environmental conditions (solder connection).
Attached to the cable end and mated with the receptacle.
The cable outlet is bent at a right angle to the mating shaft.

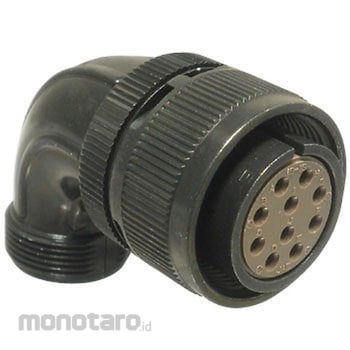

JAE Right Angle Plug / Socket Insert
#Grup produk P106584273
Spesifikasi
| Number of Poles | 6 |
|---|---|
| Shell Size | 14S |
| Connection Type | Screw |
| Contact Shape | Female |
| Sequence Number | 14S-6 |
| Matching connector | N/MS3102A, N/MS3101B |
| Connection Method | Solder |
| Contact Size (#) | 16 |
| Finish | (Contact part) Silver plating |
| Dimension V (mm) | 3/4-20UNEF-2A |
| Shape | angle |
| Dimension L (mm) | 54 or less |
| Type | Round type |
| Rated Current (A) | 13 |
| Rated Voltage (V) | AC200/DC250 |
| Dimension W (mm) | 9.52 or more |
| Dimension Q (mm) | phi 28.6(±0.8) |
| Dimensions m (mm) | 43.3(±0.8) |
| Dimensions u (mm) | 27(±0.8) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
The MIL standard MS connector is a highly reliable round connector that conforms to the US military standard MIL-DTL-5015.We have a lineup of soldering types that allow wiring without special tools, so you can easily work.
It is a RoHS compliant product.
