The load capacity is 4-5 times that of castings.
The load distribution is good, and there is little looseness or looseness, so you can run quietly and withstand impacts.
There is no risk of damage or failure, and running costs are low.
The turning is smooth and the transporter is easy to operate.
For heavy loads, it has very low starting and running resistance and moves very lightly.
For handcart

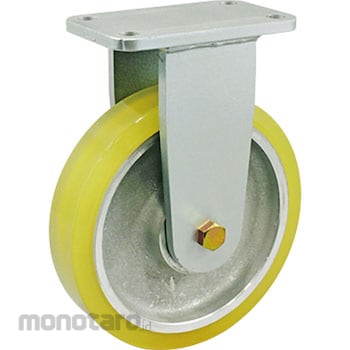

suehiro Revo Caster (for Heavy Loads) Fixed Car
#Grup produk P106584237
Spesifikasi
| Material | Aluminium wheel heavy load urethane wheel (with ball bearing) |
|---|---|
| Hub Thickness B (mm) | 63 |
| Caster Type | Plate type fixed car caster |
| Mounting base T1 x T2 (mm) | 150x90 |
| Mounting hole diameter d2 (mm) | 14 |
| Mounting height H1 (mm) | 252 |
| Lock | None |
| Mounting Hole Spacing, P1 x P2 (mm) | 120x60 |
| Wheel Type | Single wheel |
| Hardware | Steel plate heavy-duty mounting bracket |
| Load Rank | Heavy load |
| Wheel Width (mm) | 44 |
| Allowable Load (kg) | 1000 |
| Shape | Fixed caster |
| Reference/Former Model | ATF 200 |
| Wheel Diameter D (mm) | 200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Since the slide bearing structure has no center shaft, there is little looseness or looseness and turning is smooth.Forged special steel that is strong against impact is used for the base plate.
A grease nipple is attached to the swivel part.
