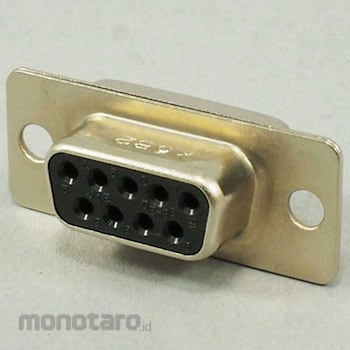

JAE D-Sub Connector Electromagnetic Interference (Emi) Countermeasure Type
#Grup produk P106582734
Spesifikasi
| Number of Poles | 9 |
|---|---|
| Applicable wire range AWG (#) | 20 |
| Connection Type | Screw |
| Contact Shape | Female |
| Connection Method | Solder |
| Finish | (contact part) Gold plating |
| Dimension H (mm) | 1.2(±0.4) |
| Dimensions d (mm) | 7.82(±0.25) |
| Dimension E (mm) | 12.6(±0.5) |
| Insulation Resistance (MΩ) | 5000 or less |
| Dimension F (mm) | 19.3(±0.4) |
| Rated Current (A) | 5 (per contact core) |
| Dimension K (mm) | 3.05(±0.25) |
| Dimension G (mm) | 10.7(±0.4) |
| Dimension A (mm) | 30.8(±0.5) |
| Dimension C (mm) | 24.99(±0.13) |
| Contact Resistance (miliΩ) | 2.7 or less |
| Withstand Voltage (V/minute) | AC1250 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Same shape as standard type D
Feature
The Dsub series is a highly reliable connector that is widely used all over the world and is widely used in FA equipment, communication equipment, etc.The shell has a nickel-plated finish, and the pin-side front shell is grounded dimple-processed.
It is an EMI countermeasure type that ensures contact between shells and enhances the shielding effect.
