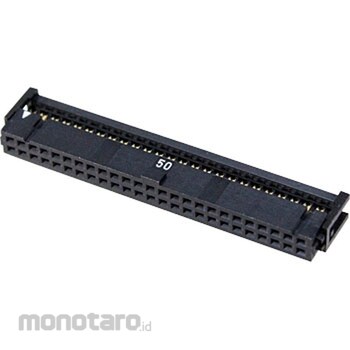

JAE Board To Wire Connector
#Grup produk P106582150
Spesifikasi
| Number of Poles | 50 poles |
|---|---|
| Connector Shape | Socket |
| Connection Method | Crimping |
| Finish | (Contact part) Gold plating on nickel |
| Contact Spacing (mm) | 2.54 |
| Type | Daisy chain type |
| Insulation Resistance (MΩ) | 1000 |
| Rated Current (A) | 1 |
| Operating Temperature Range (°C) | -55to+105 |
| Contact Resistance (miliΩ) | 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A high-reliability, high-performance connector with a pitch of 2.54mm that complies with the MIL-C-83503 standard. There is no need to strip the flat ribbon cable (FRC), and it consists of a pressure connection type socket connector that can connect all the cores at once and a pin header for board mounting.
Feature
For 1.27mm pitch flat ribbon cable connection.Multi-connection is possible by attaching it in the middle of the cable.
