A highly rigid, quasi-high-speed type that absorbs the thermal expansion of the workpiece due to high-speed cutting and adopts a buffer structure that prevents excessive axial load from being applied to the thrust ball bearing. The main body is designed to fit within the range of 60 ° center angle, so it does not get in the way of tool penetration and is suitable for a copying lathe.
The bearing clearance can be adjusted by tightening the front lid with a wrench to maintain high accuracy.

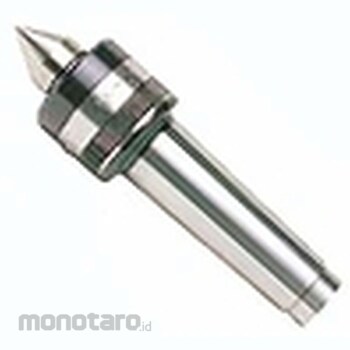

NSK Rotation Center (Lc-N Type)
#Grup produk P106575804
Spesifikasi
| Angle α (°) | 60 |
|---|---|
| Maximum Runout of Center Cone (mm) | 0.005 |
| Shank K | MT-4 |
| Dimension L1 (mm) | 40 |
| Dimension L2 (mm) | 53 |
| Dimension L3 (mm) | 108 |
| Overall Length L (mm) | 201 |
| Dimensions d (mm) | Φ56 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
A buffer structure that absorbs the thermal expansion of the work piece is adopted, and various needle roller bearings and thrust ball bearings are used.Ulasan Produk
