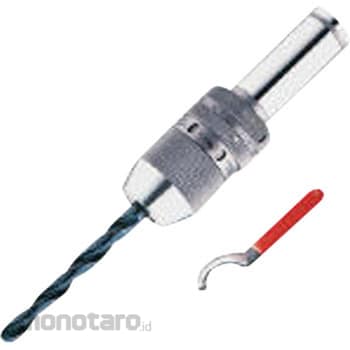

YUKIWA Dream Chuck (Cnc)
#Grup produk P106567373
Spesifikasi
| Outer Diameter (φmm) | 51 |
|---|---|
| Grasp width (mm) | 0.5-13.0 |
| Runout accuracy (mm) | 5/100 or less |
| Accuracy (mm) | 0.05 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is a dual function of drilling and tapping. Reverse rotation processing is possible by using a reverse lock mechanism. The tap stand can be processed up to M16. Prevents loosening even at an instantaneous stop from high-speed rotation. Tighten with a hook spanner to improve safety. It is mainly mounted on a drilling machine and is equipped with drills and taps.
Feature
It has two roles, one for drilling and the other for tapping.Reverse processing is possible by adopting a reverse lock mechanism. (The chuck itself does not have a built-in reversing function)
The tap stand can be processed up to M16.
It also prevents loosening even when it is stopped momentarily from high-speed rotation.
It can be retightened with a hook spanner to improve safety.
It is mainly attached to a drilling machine, etc., and a drill or tap is attached.
