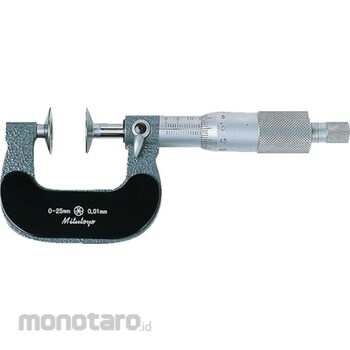

Mitutoyo Disk Micrometer
#Grup produk P106560404
Spesifikasi
| Minimum Display (mm) | 0.01 |
|---|---|
| Measurement Surface Shape | Tooth thickness type |
| Constant Pressure Device | Ratchet stop |
| Content Set | 1 reference rod (excluding measurement range 0 to 25), 1 spanner (No. 301336) ; Storage box ; Spanner (301336) |
| Dimension L (mm) | 75 |
| Dimensions a (mm) | 14 |
| Dimensions b (mm) | 63 |
| Dimensions c (mm) | 5.5 |
| Dimensions e (mm) | 20 |
| Dimensions f (mm) | 8 |
| Dimensions t (mm) | 0.7 |
| Feeder Structure | Spindle linear |
| Flatness (µm) | 1 |
| Gauge Head Diameter (Ø mm) | 20 |
| Graduation (mm) | 0.01 |
| Instrument Error (µm) | ±6 |
| Maximum Allowable Error (µm) | ±6 |
| Measurement Range (mm) | 75 to 100 |
| Mitutoyo Part Number | PDM-100B |
| Parallelism (µm) | 6 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
For measuring spur gears and helical gears.Ulasan Produk
