- Multiplexing units for connecting Sylvac capacitive probes to a computer or a PLC
- 2 or 4 inputs for capacitive sensors P5, P10 or P25
- Aluminium and plastic housing
- Available in 2 versions :
- D302/D304 allowing the reading and conversion of the position value of Sylvac capacitive probes up to a resolution of 0.1μm. The results are available on a USB port and on a MODBUS RS485 port.
- D302a/D304a equipped with an extension to provide analogue voltages corresponding to the position of the probes, with a range of +/-10V and a resolution of up to 0.025mV
- Baud rate 10-20 measurements per second depending on resolution
- Up to 16 D304 units can be coupled together to have a maximum of 64 probe inputs.
- IP40 protection

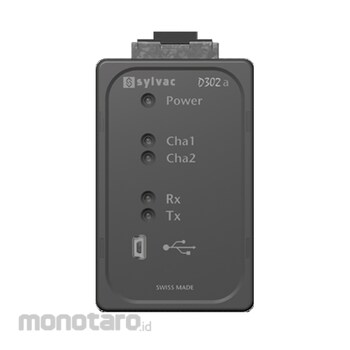

SYLVAC Multiplexer Unit Analog Signal
#Grup produk P106527092
Sebelum PPN:
Rp30.999.900 - Rp41.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Analog Output Signal | -10V to +10V |
|---|---|
| Case | Aluminium profil / plastic TA 6 |
| Maximum Error (µm) | P2 : 1.5 / P5 : 1.6 / P10 : 1.6 / P25 : 1.9 |
| Output Data | USB / RS 485 |
| Protection Rating | IP40 |
| Repeatability (µm) | P2 : 0.2 / P5 : 0.2 / P10 : 0.2 / P25 : 0.2 |
