- 1D workshop measuring column with Trimos technology
- Perfectly suited for the rapid measurement of heights, depths, thicknesses, internal and external diameters, centre-to-centre distances, etc.
- Revolutionary crank handle offering the user the choice of manual or motorised carriage movement
- Lateral probe holder allows the use of extra-long keys (up to 400 mm) with excellent repeatability
- XL display module with 0.001 mm resolution and intuitive functions
- Cast iron base with ergonomic handle with air cushion control knob
- Measuring force electronically adjustable (0.75-1.5 N)
- Rechargeable battery with 12-hour working autonomy
- Measuring range 711 mm (1023 mm with extension)
- Supplied with interchangeable Ø 4 mm ruby ball button
- USB/RS232 data output
- Optionally, a Sylcom-compatible Bluetooth communication accessory can be ordered as an accessory

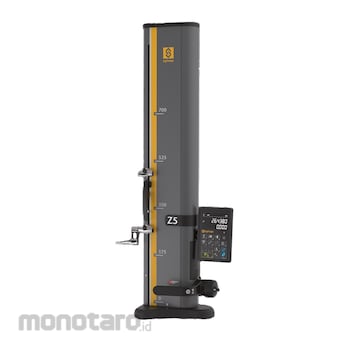

SYLVAC Height Gauge Z5
#Grup produk P106526057
Spesifikasi
| Autonomy (hour) | 12 |
|---|---|
| Frontal Squareness Deviation (µm) | 8 |
| Maximum Error (µm) | 2.5 + L / 300 |
| Maximum Resolution (mm) | 0.001 |
| Measuring Force (N) | 0.75 ÷ 1.5 |
| Measuring Range (mm) | 711 |
| Measuring Range with Extension (mm) | 1023 |
| Output Data | USB / RS232 |
| Repeatability (µm) | 2 |
