- Compact display units for measuring probes
- Extremely robust aluminium housing
- Available in 3 versions with 2 probe inputs :
- D70H = for HEIDENHAIN touch probes type ST/MT
- D70I = for SYLVAC inductive probes
- D70S = for SYLVAC capacitive probes
- Large 4.3'' colour touch screen with intuitive functions
- Display in different modes (possibility to display the 2 values simultaneously)
- Resolution up to 0.0001 mm (0.1 µm) and 0.00001 mm (0.01 µm) for version D70H
- Extensive choice of functions including MIN/MAX/DELTA and channel combinations
- Connector for optional pedal 904-4101 (D70S) and 904-4102 (D70H and D70I)
- Powered by USB cable, the unit is detected as an external keyboard when connected to the computer, allowing
for easy data transfer.
- USB and RS232 data outputs
- Connector for Mbus
- IP54 liquid-proof front panel for workshop use

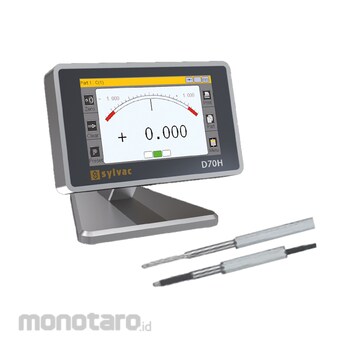

SYLVAC Display Unit D70H
#Grup produk P106525535
Spesifikasi
| Overall Dimensions (mm) | 140x105x111 |
|---|---|
| Case | Aluminium |
| IP Rating | IP65 |
| Output Data | USB / RS232 (1x1) |
| Probes | Heidenhain ST/MT probes (Mitutoyo & Magescale with adapter) / P12D |
