4 in 1, 15mW Output
Self Calibration
Rechargeable Li-ion Battery
500 Data Storage

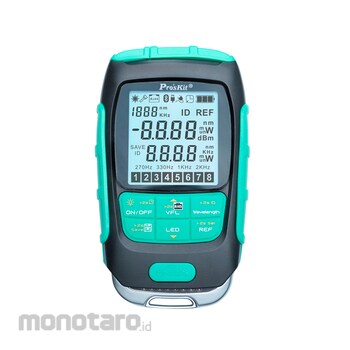

Pro'sKit 4 in 1 Fiber Optical Power Multimeter (Multitester)
#Grup produk P106522732
Sebelum PPN:
Rp1.199.900 - Rp2.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimensions (mm) | 98x59x27 |
|---|---|
| Detector Type | InGaAs |
| Wavelengths Range (mm) | 700-1700 |
| Optical Connector (mm) | 2.5 Universal |
| Measurement Range (dB) | -70 to +10 |
| Accuracy (dB) | (1550,1310nm) ±0.2/ (1490nm,1625nm,1650nm) ±0.3/ (850nm,980nm,1300nm) ±0.4 |
| Automatic Power Off | Yes (10min) |
| Battery (V) | 3.7 (450mAh, Li-ion) |
| Display Resolution (dB) | 0.01 |
| LAN Cable | UTP Cable |
| LAN Cable Connector | RJ45(UTP/8P8C) |
| Measuring Length (m) | 600 |
| Measuring Range (dB) | -70 to +10 |
| Power Display Units | dBm,mW,μW,nW |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
" - Mohon untuk mengecek kembali informasi ukuran dan detil produk pada Attribute Information sebelum membeli- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya. Produk yang diterima akan sesuai dengan informasi model number/part number "
Feature
- CE Complied.4 in 1, including Power Meter, Lan Cable Tester, Visual Fault Locator & LED Flashlight.
- Power Meter:
Supports 8 wavelength, 850/980/1300/1310/1490/1550/1625/1650nm.
Measurement units: dB, dBm, nW, mW & uW.
Other Functions: Wave ID function, wavelength memory, self-calibration & REF value setting.
- Lan Cable Tester:
Pin to Pin cable map indicator.
Max. measuring length 600m.
- Visual Fault Locator:
Easy to locate the breakpoint & bad connections in fiber optic cables.
Both continuous and flashing modes available.
- LED Flashlight:
Supports extra illumination in dark working condition.
- More Functions:
15mW output power.
Equipped with 3.7V/450mAh Li-ion battery, working hours > 50 hours (only OPM).
Micro USB rechargeable design.
Supports 500 data storage.
