The SMALLEST & most POWERFUL functions
Simple 3 push-button operation
Built-in USB connector for rechargeable battery charger
Auto power off for energy saving

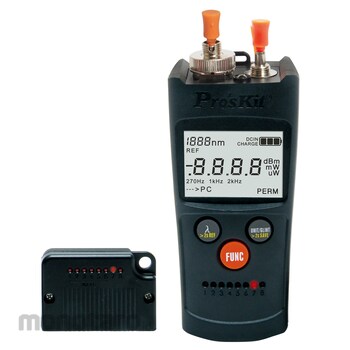

Pro'sKit 4 In 1 Fiber Optic Power Multimeter (Multitester)
#Grup produk P106522714
Spesifikasi
| Dimensions (mm) | 125x52x34 |
|---|---|
| Detector Type | InGaAs |
| Calibrated Wavelengths (Nm) | Multiple mode:850/1300, Single mode:1310/1490/1550/1625 |
| Optical Connector (mm) | ST/SC/FC & 2.5 Universal |
| Measurement Range (dBm) | +6 to -70 |
| Accuracy (dB) | ± 0.2 |
| Automatic Power Off Time (minute) | 10 (Can be cancelled) |
| Battery Life (hour) | >100 (only OPM) |
| Display Resolution (dB) | ±0.01 |
| Frequency Identification (kHz) | 270Hz, 1, 2 |
| Low Battery Warning | Low battery energy |
| Power Display Units | dBm,mW,μW,nW |
| Power Measurement Linearity (%) | ±0.1 |
| Power Supply | AA/LR6 1.5V x2 pcs |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Function 1 FIBER OPTICAL POWER METER- Wide range of power measurement from 850nm to 1625nm
o Multiple mode:850nm/1300nm/
o Single mode:1310nm/1490nm/1550nm/1625nm
- Power measurements in dBm,mW and uM
- Supports 2.5mm universal connectors (for ST/SC/FC)
Function 2 VISUAL FAULT LOCATOR
- Easy to locate the breakpoint and bad connections in fiber optic cables
- Supports 2.5mm universal connectors (for ST/SC/FC)
- Both continuous and flashing modes available
Function 3 CABLE TESTER
- Pin to pin cable map indicator (1~8 LEDs)
- Tests two types of connectors(RJ-11&RJ-45)
- The maximum length measurement: 600M
Function 4 LED FLASHLIGHT
- Convenient for working in a dark environment
- Features 2 modes for long illumination and SOS signal
