Note1) Dynamic load rating is based of the nominal life 50km.
In case of 100km, C on the table need to be divided by 1.26
Ex) LM12's 50km basis dynamic load rating C=410N
LM12's 100km basis dynamic load rating C100=410 / 1.26=325.40N
Note2) Based on the weight of resin retainer

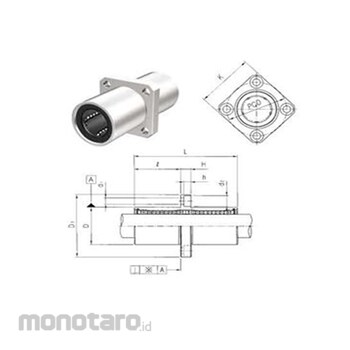

SAMICK Middle Flanged Type Linear Bushing
#Grup produk P106350889
Spesifikasi
| Nominal Shaft Diameter (mm) | 25 |
|---|---|
| Basic Load Rating Dynamic (mm) | 1560 |
| Basic Load Rating Statistic (mm) | 3140 |
| Diameter dr. (mm) | 25 |
| Dimension D1 (mm) | 62 |
| Dimension H (mm) | 8 |
| Dimension K (mm) | 50 |
| Dimension L (mm) | 112 |
| Dimension PCD (mm) | 51 |
| Dimensions d (mm) | 40 |
| Dimensions d1 (mm) | 5.5 |
| Dimensions d2 (mm) | 9.5 |
| Dimensions h (mm) | 5.4 |
| No. Of Ball Circuit | 6 |
| Squareness (µm) | 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
