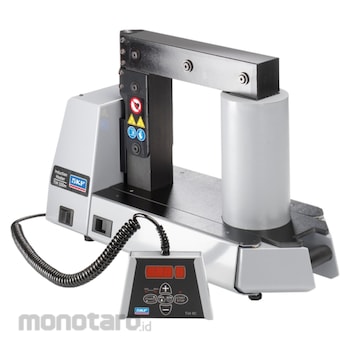

The SKF medium induction heater TIH 100m has the same high standards of efficiency and performance as the smaller heater TIH 030m, combined with increased capacity. The advanced design of the power electronics allows features of accurate electric current control, cut-outs to avoid overheating and controls on rate of temperature increase.
Placing the induction coil outside the heater’s housing allows the heating of bearings weighing up to 120 kg (264 lb). The heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 100m is equipped with a time mode for heating components other than bearings. The heater is supplied standard with three yokes and is available in two executions: 230V/50-60Hz or 400-460V/50-60Hz.
SKF Medium Induction Heater TIH-100M/230V
#Grup produk P106349883
Spesifikasi
| Voltage (V) | 230 |
|---|---|
| Frequency (Hz) | 50/60 |
| Max. Bearing Weight (kg) | 120 |
| Magnetic Probe | Yes, K-Type |
| Range Time Control (minute) | 0-60 |
| Accuracy Time Control (s) | ±0.01 |
| Thermometer Mode | Yes |
| Bearing Mode | Yes |
| Power Reduction | 2-step; 50 - 100% |
| Control Panel | Key board with LED in Remote Control |
| Dimensions (mm) | 570x230x350 |
| Maximum Bore Diameter (mm) | 20-400 |
| Maximum Power Consumption (kVA) | 3.6 |
| Temperature Control Accuracy (°C) | ±2 |
| Temperature Control Range (°C) | 0 - 250 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Feature
- Supplied with a swivel yoke and two smaller yokes, located in an integrated storage compartment- Easy and safe to use with automatic temperature control or time controlled heating
- Automatic demagnetization reduces risk of bearing contamination
- Suitable for non-bearing applications for workpieces weighing up to 60 kg
- Automatic temperature hold function to keep the bearing hot after completion of the heating cycle
