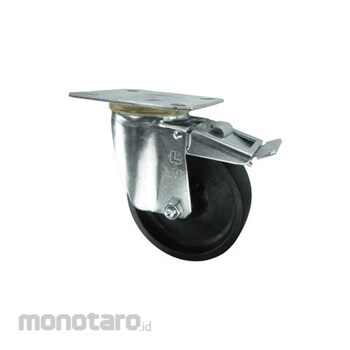

Atlas Workholders HT Braked Swivel Plate
#Grup produk P106315071
Spesifikasi
| Load Capacity (kg) | 120 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Bolt Size | M8 |
| Mount Type | Swivel Top Plate With Brake |
| Tread Width (mm) | 30 |
| Wheel Material | Thermoplastic |
| Fixing Hole Centres Dimensions (mm) | 76x55 |
| Fixing Plate Size (mm) | 102x83 |
| Min/Max Operating Range (°) | -40 to 270 |
| Overall Height (mm) | 128 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A range of castors for high temperature conditions. Available top plate or bolt hole fixing and with the option of total-stop brake. Swivel castors are fitted with a swivel head seal. High temperature castors fitted with thermoplastic wheels and high temperature grease.
