Indexa M4-M12 Tapping Head Sets, Collets X Arbor (JSN12-17)
#Grup produk P106312436
Spesifikasi
| Type | Tapping Head Set |
|---|---|
| Maximum Speed (rpm) | 1000 |
| Shank type | MT Taper |
| Overall Length (mm) | 156 |
| For use with | JSN-12 |
| Body Diameter (mm) | 75 |
| Clockwise Compression (mm) | 5 |
| Clockwise Expansion (mm) | 14 |
| Compatible Tap Size | M4 - M12 |
| Compatible Tap Standard | BS 949 |
| Includes | (2) Rubber Flex Collets |
| Number of Pieces | 9 |
| Reverse Ratio | 0.000715278 |
| Shank Size | MT3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

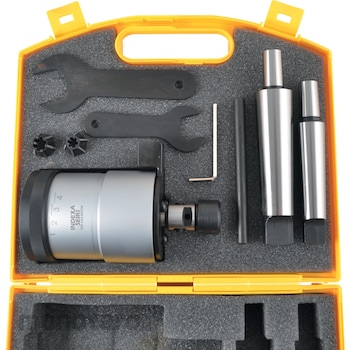

Adjustable torque control protects against tap breakage/overload. Auto-reverse withdraws the tap without reversing the machine spindle. Each set is supplied complete with two rubber-flex collets, two Morse arbors, kick bar and wrenches. Suitable for use with ISO, DIN and ANSI taps. These tapping heads are suitable for light and medium duty applications, not for production machining. Range capacity is nominal sizes only and is dependent on tap shank dimensions (ISO or DIN).
