DESIGN
Hallite’s 616 is a compact, asymmetric twin lip rod seal offering excellent dry rod
sealing for light and medium-duty applications where space and friction are at
a premium. The seal is manufactured in Hythane® 181, Hallite’s high-performance
polyurethane, for easy installation and excellent low temperature performance.
The Hallite 616 design incorporates the sealing efficiency of the Hallite 605 rod
seal with the compact grooves used by PTFE rod seals.
Hallite recommends using our 616 rod seal as either a single seal or in combination
with the Hallite R16 PTFE rod seal. The combination is recommended for use in
applications where pressure peaks may occur, such as cylinders with cushioning.
The Hallite R16 PTFE rod seal is fitted into the groove on the pressure side of the
gland and the Hallite 616 is used as the secondary seal to ensure minimal leakage.
Consult your local Hallite office when considering this arrangement.

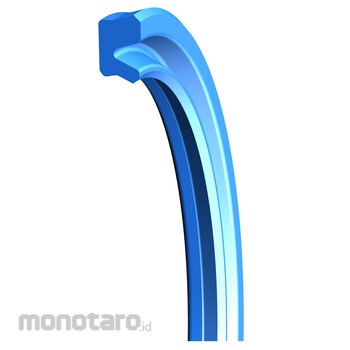

Hallite Rod Seal 616
#Grup produk P106295351
Spesifikasi
| Maximum Speed (m/s) | 1 |
|---|
