DESIGN

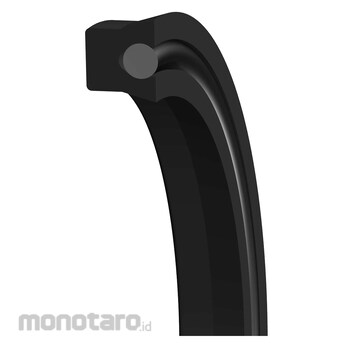

The Hallite 511 is a standard profile loaded U-cup with precision trimmed sealing
lips manufactured in either a polyurethane or polyester shell energised by a high
quality O-ring and designed for common North American square grooves.
At zero or low pressure, the O-ring helps to increase the sealing force preventing
any bypass. Under most conditions as the pressure rises, the sealing force increases
and the O-ring ensures complete lip actuation.
The symmetry of the Hallite 511 makes it ideally suited for single-acting rod and
piston applications and its flexibility enables easy installation. The 511 can also be
fitted back-to-back for use in double-acting applications. Although the Hallite 511 can
be used as a rod seal, other Hallite non-square rod seals are more suitable options,
such as the Hallite 513, 605, or 621.
Hallite Rod Seal 511
#Grup produk P106295254
Spesifikasi
| Dynamic Application | Any Fluids Based on Mineral Oil, HFA (5/95), HFB (60/40 invert emulsion), HFC (Water Glycol), Water, Air/Nitrogen, Synthetic Esters (HEES, HFDU) |
|---|---|
| Static Application | Any Fluids Based on Mineral Oil, HFA (5/95), HFB (60/40 invert emulsion), HFC (Water Glycol), Water, Air/Nitrogen, Synthetic Esters (HEES, HFDU) |
| Maximum Speed (m/s) | 4 |
| Temperature Range (°C) | -45 +110 |
