Capacitance sensor allows ports to be wet/wet, wet/dry, or dry/dry. Unique isolation system responds quickly to pressure changes—20 times faster than fluid-filled transmitters.
The rugged NEMA 4 (IP65) housing withstands harsh environments normally found in process control, liquid-level measurement, and energy management. All transmitters have screw terminal connections.

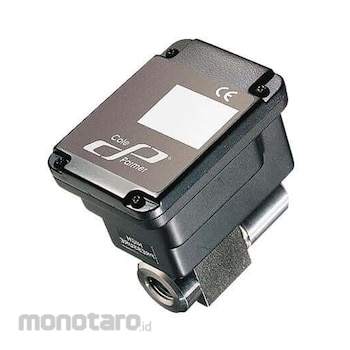

Cole Parmer Wet Differential Pressure Transmitter
#Grup produk P106292381
Spesifikasi
| Accuracy (%) | ±0.25 (full-scale) |
|---|---|
| Minimum Pressure (PSID) | None |
| Minimum Temperature (°F) | 30 |
| Maximum Temperature (°F) | 150 |
| Minimum Temperature (°C) | -1 |
| Battery Type (VDC) | 11 to 30 (unregulated) |
| Case | Brass |
| Electrical Connections (inch) | 1/2 (internal conduit port) |
| Enclosure Rating | NEMA 4, IP65 |
| Height (cm) | 7.6 |
| Height (inch) | 3 |
| Length (inch) | 3 |
| Maximum Temperature (°C) | 65 |
| Media Compatibility | Gases and liquids compatible with wetted materials |
| Output (mA) | 4 to 20 |
| Process Connection (inch) | 1/4 NPT(F) |
| Unit of Measurement | psid |
| Wetted Materials | 17-4PH SS, Viton® |
| Width (inch) | 2 |
