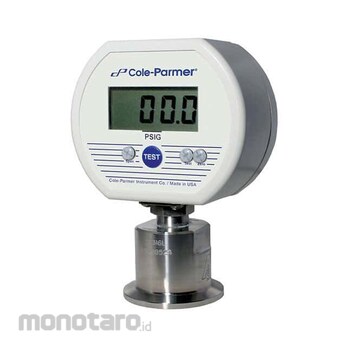

Cole Parmer Sanitary Digital Pressure Gauge Loop Powered
#Grup produk P106279821
Sebelum PPN:
Rp98.999.900 - Rp109.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy (%) | ±0.25 (full-scale) ±1 (least significant digit) |
|---|---|
| Dial Size (inch) | 3.5 |
| Dial size (mm) | 89 |
| Minimum Pressure (PSI) | None |
| Minimum Temperature (°F) | -4 |
| Case | ABS |
| Diaphragm Fill | FDA-compliant |
| Display | Digital |
| Electrical Connections | 3-ft (1-m) two-conductor 22 AWG cable with tinned ends |
| Enclosure Rating | NEMA 4X |
| Lens Material | Polycarbonate |
| Maximum Temperature (°C) | 85 |
| Maximum Temperature (°F) | 185 |
| Minimum Temperature (°C) | -20 |
| Power Source | Loop |
| Process Connection (inch) | 1 or 1.5 (sanitary Tri-Clamp) |
| Unit of Measurement | psig, in. Hg, mm Hg, kPa, mPa, mbar, bar, kg/cm², oz/in², g/cm², in. H₂O, cm H₂O, ft H₂O, atm, Torr |
| Wetted Materials | 316L stainless steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These digital sanitary pressure gauges feature a rugged ABS and polycarbonate housing with NEMA 4X rating for protection against strong jets of water. The circuitry is further protected against moisture by a conformal polymer coating, so these gauges are well-suited to beverage and brewery service. The fluid path is 316L stainless steel with a flush-mounted diaphragm and FDA-compliant fill solution to comply with 3A sanitary standards.
