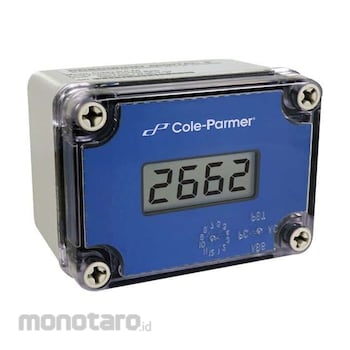

Cole Parmer Loop-Powered Panel Mount Process Meter With Loop-Powered Backlight
#Grup produk P106269000
Spesifikasi
| Control Input mA | 4-20 |
|---|---|
| Display Type (inch) | 0.6 (LCD) |
| Display Digits | 3.5 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°F) | -40 |
| Enclosure | NEMA 4; IP66 |
| Overall Depth (inch) | 2 49/64 |
| Overall Depth (mm) | 70.1 |
| Overall Height (inch) | 4 21/64 |
| Overall Height (mm) | 110 |
| Overall Width (inch) | 3 5/32 |
| Overall Width (mm) | 80 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
All power comes directly from the 4 to 20 mA input signal—no additional AC power source is required! Explosion-proof models provide safe use in hazardous locations and are easy to install and calibrate. These rugged, yet economical meters are ideal for use in hostile environments. Choose the backlit display option when mounting the meters in poor lighting conditions. Meters and backlighting option are powered directly from the 4 to 20 mA loop; no need for an AC power source, batteries, or additional wiring. Models with explosion-proof enclosures meet specifications for use in Class I, groups B, C, D and Class II, for Groups E, F, and G locations.
